EMMA400L

EMMA600

EMMA600L

EMMA1000

EMMA1000L

EMMA1500L

Laser+Vision+IMU

Navigation Mode
600

Payload (kg)
±2mm/±0.2°

Operation Precision
50

Lifting Height (mm)
1186

Rotating Diameter (mm)
8

Run Time (h)

Download product data

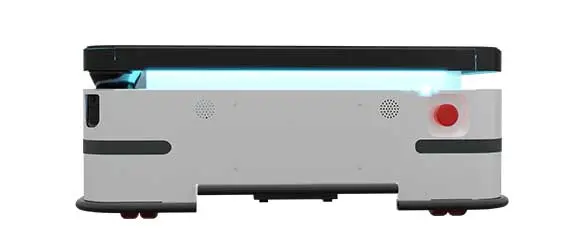

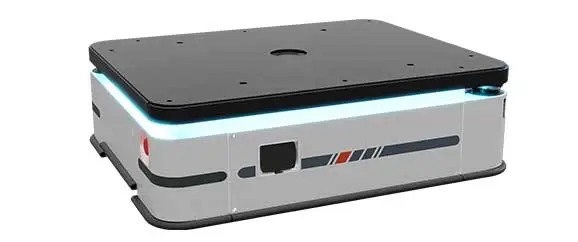

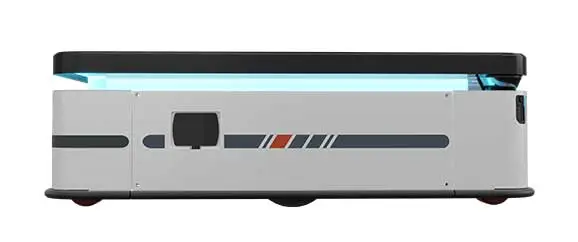

EMMA600: Automated Mobile Robots, amr - Mobile Industrial Robot

Name: EMMA600
Brand: Hangzhou Iplusmobot Technology Co.,Ltd
Availability: InStock

Automated Mobile Robots is a self-charging robotic gadget that can effortlessly carry out fleet dispatch activities and travel on its own. It can go both forward and backward and automatically stops when it encounters any obstructions.

Basic Parameters

Dimension (L*W*H) 987×782×306mm

Weight 220kg

Differential Drive (Bidirectional)

Sensor

Double Laser

Bottom Camera

Optional Top Camera

Battery

Charging Time 2h

Operating Time 8h

Performance

Maximum Payload 600kg

Operation precision ±2mm/0.2°

Position Accuracy ±10mm/±1°

Detect Distance 30m

Max Speed 1.2m/s

Laser FOV 360°

Safety System

Laser Obstacle Avoidance

Laser Obstacle Stoppage

Sound And Light Alarm

Bumpe

Depth Camera

Emergency Stop

Main Function

Autonomous Positioning Navigation Intelligent Path Planning

Travel Forward or Backward (Optional)

Autonomous Stopping in Case of Obstacles Intelligent Bypassing Obstacles

Material Shelf Identification Operation Platform Identification

Docking and Interaction with the Third-Party Facilities

Execute Fleet Dispatch Tasks

Self Charging

Product Advantages

Pass Unimpededly in the Ehole Area

With no need for large number of markers, any area in the factory can be reached.

Customized Efficiently

100% own technologies, adapt to various kinds of carriers rapidly

Fleet Management and Dispatch

With CLOUDIA, efficient robot fleet collaboration can be accomplished.

Materials in the Whole Factory Can Be Controlled and Traced in the Whole Process

The logistics data of the whole factory without stagnation and dead angle

Intercommunicantion in the Whole Factory

Seamless connection with software such as MES and WMS, and equipment such as machine and elevators.

It's Easy to Use and Operate

Easy start with 3 steps of method CAR LY

Verification on Large Scale

Verification on multi-industry application scenes.
