EMMA
Industrial-Class Mobile Robot Series
autonomous mobile robots companies
autonomous mobile robot companies
autonomous mobile robot amr
mobile robot companies
autonomous mobile robots companies
autonomous mobile robot companies
autonomous mobile robot amr
mobile robot companies
  • Amr Automated Mobile Robot
    Laser+Vision+IMU

    Navigation Mode


  • Amr Autonomous Mobile Robot
    1000

    Payload (kg)

  • Amr Autonomous Mobile Robots
    ±2mm/±0.2°

    Operation Precision


  • Amr Autonomous Mobile Robot
    50

    Lifting Height (mm)


  • Amr Robot
    1186

    Rotating Diameter (mm)


  • Amr Mobile Robot
    8

    Run Time (h)

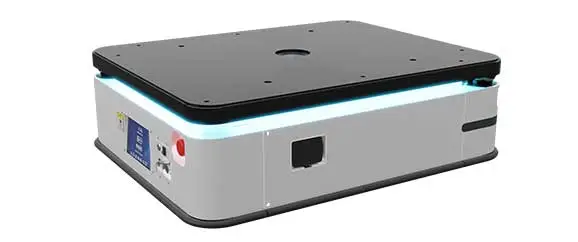

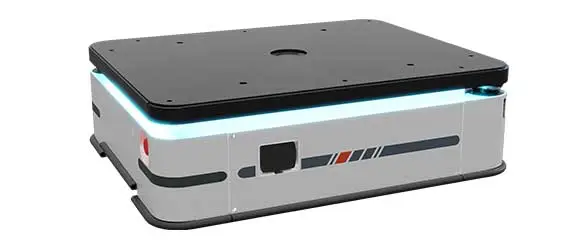

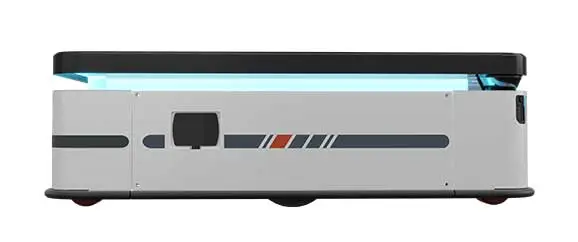

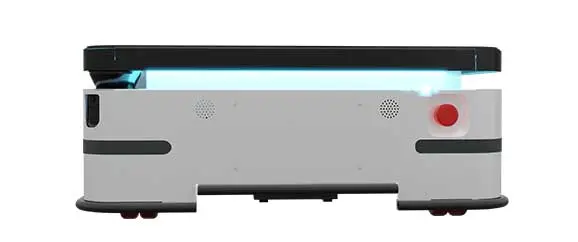

EMMA1000: automated mobile robots,amr automated mobile robot, mobile industrial robot


Basic Parameters

Dimension (L*W*H) 984×781×306mm

Weight 220kg

Differential Drive

Sensor

Double Laser

Bottom Camera

Optional Top Camera

Battery

Charging Time 2h

Operating Time 8h

Performance

Maximum Payload 1000kg

Operation precision ±2mm/±0.2°


Position Accuracy ±10mm/±1°

Detect Distance 30m


Max Speed 1.2m/s

Laser FOV 360°

Safety System

Laser Obstacle Avoidance

Laser Obstacle Stoppage


Sound And Light Alarm Bumpe


Depth Camera

Emergency Stop


Main Function

Autonomous Positioning Navigation Intelligent Path Planning
Autonomous Positioning Navigation Intelligent Path Planning
Travel Forward or Backward (Optional)
Travel Forward or Backward (Optional)
Autonomous Stopping in Case of Obstacles Intelligent Bypassing Obstacles
Autonomous Stopping in Case of Obstacles Intelligent Bypassing Obstacles
Material Shelf Identification Operation Platform Identification
Material Shelf Identification Operation Platform Identification
Docking and Interaction with the Third-Party Facilities
Docking and Interaction with the Third-Party Facilities
Execute Fleet Dispatch Tasks
Execute Fleet Dispatch Tasks
Self Charging
Self Charging

Industrial Mobile Robot Advantages

Pass Unimpededly in the Whole Area
With no need for large number of markers, any area in the factory can be reached.


Customized Efficiently
100% own technologies, adapt to various kinds of carriers rapidly.


Fleet Management and Dispatch
With CLOUDIA, efficient robot fleet collaboration can be accomplished.


Materials in the Whole Factory Can Be Controlled and Traced in the Whole Process
Materials in the Whole Factory Can Be Controlled and Traced in the Whole Process
The logistics data of the whole factory without stagnation and dead angle.


Intercommunicantion in the Whole Factory
Seamless connection with software such as MES and WMS, and equipment such as machine and elevators.


It's Easy to Use and Operate
It's Easy to Use and Operate

Easy start with 3 steps of method CAR LY.

Verification on Large Scale
Verification on Large Scale

Verification on multi-industry application scenes.
