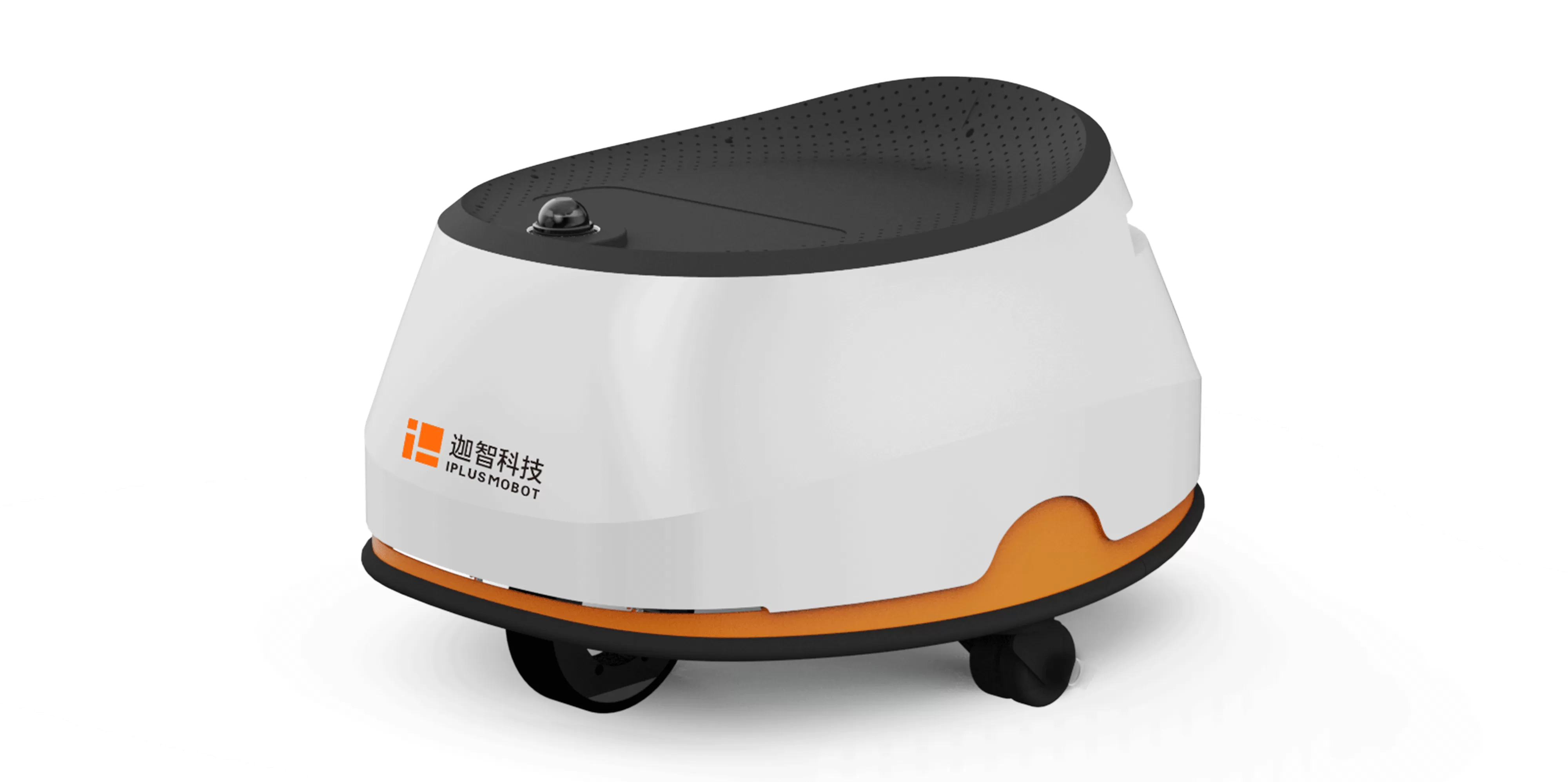

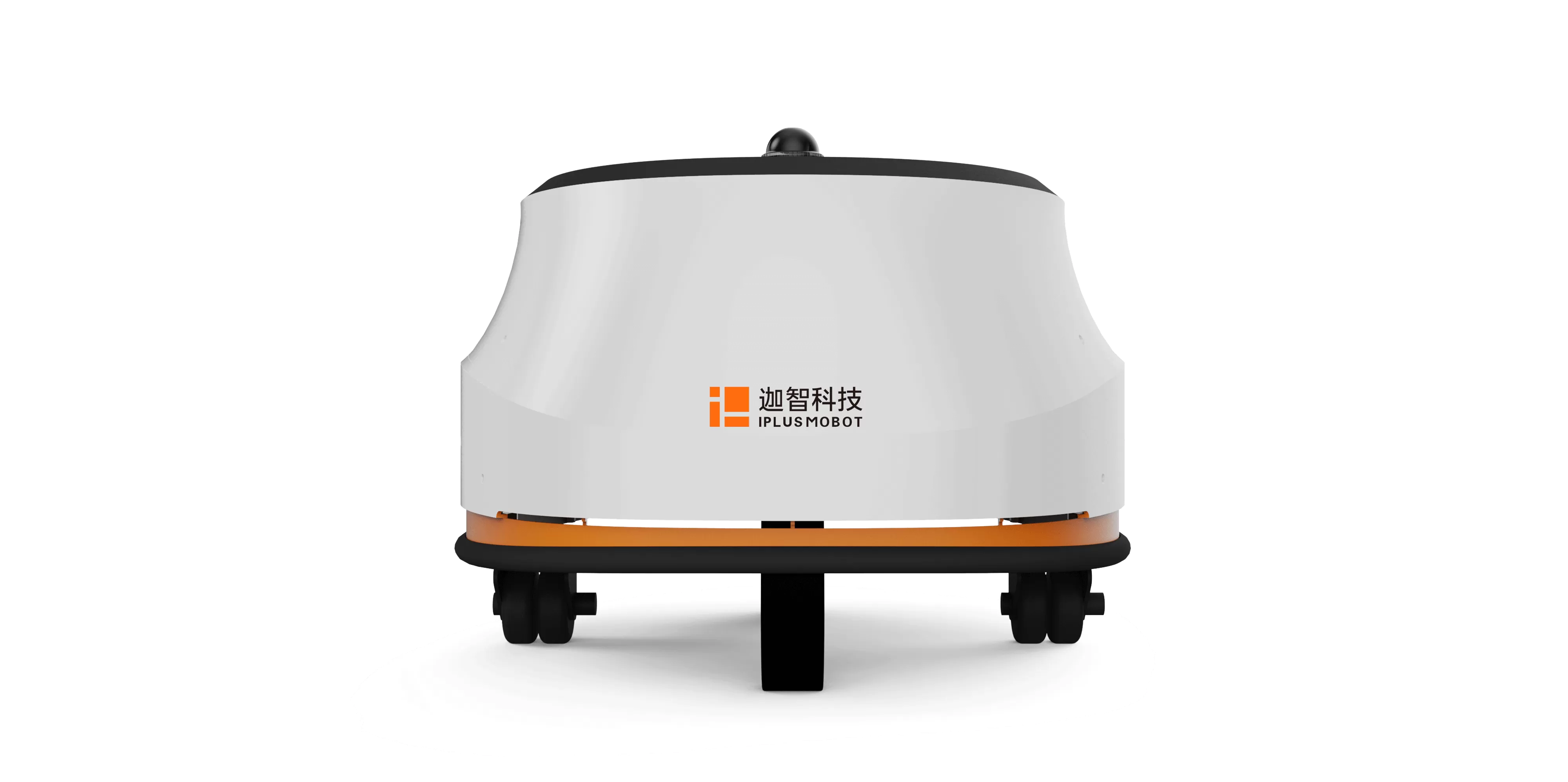

Name: Flagship Omnidirectional Chassis for Embodied Robots
Brand: Zhejiang IPLUSMOBOT Technology Co., Ltd.
Availability: InStock

Specifications

NERA-P200-DS3

Dimensions (LWH)	745620345mm 29.324.413.6in
Pivoting diameter	900mm \| 35.4in
Weight (optional counterweight available)	110kg \| 242.5lbs
Position accuracy	±10mm \| 0.39in / ±1°
Mounting deck height	166mm \| 6.54in
Maximum speed (no load)	1.2m/s \| 2.7mph

Maximum speed (full load)	1.0m/s \| 2.2mph


Max. gap tolerance	30mm \| 1.18in
Max. ground elevation difference	10mm \| 0.39in
Safety system	Laser + Vision + Bumper + Sound and light alarm
Battery type	Lithium iron phosphate battery
Battery specifications	2 x 20Ah
Charging time	≤1.5h

Laser SLAM + Vision + IMU

Hybrid Navigation

2D / 3D laser

Standard Laser Scanner

200kg | 440.9lbs

Payload

Forward / backward, turning, rotating in place, lateral movement

Driving Direction

48V、 24V

External Power Output

8°

Ground Slope

ADVANTAGES

Stable Chassis System

Chassis load capacity of 200kg, supporting omnidirectional movement, providing a stable platform for robot mobility and operation.

Advanced Control Algorithm

Supports high-precision SLAM navigation and intelligent path planning.

Convenient Application Development

A complete application development pathway and an extensive skill library that enable rapid deployment of embodied intelligence technologies and quick scene adaptation.


